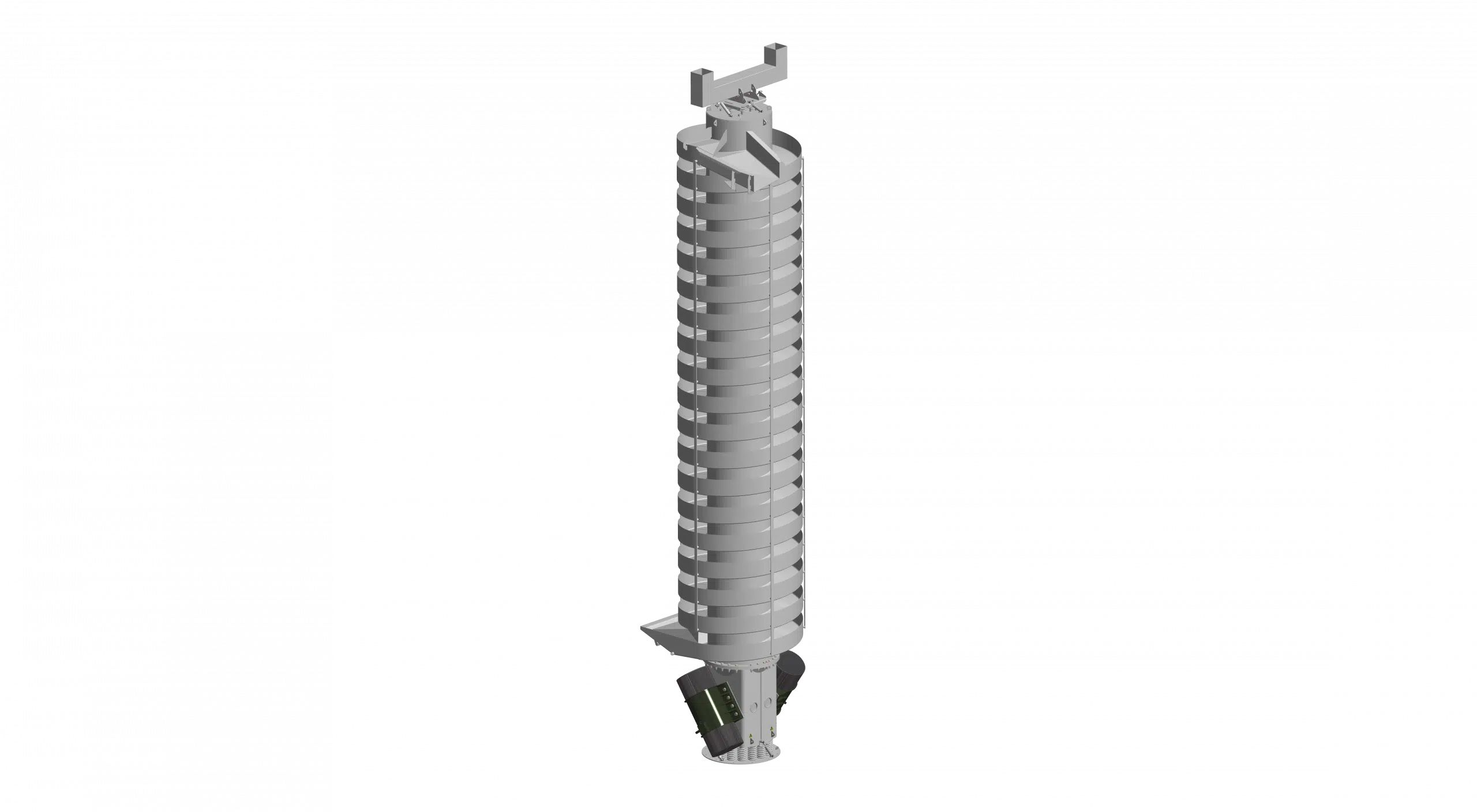

CER dia1500 motor bottom no column 1a

Vibratory Conveying Systems

Spiral Elevator

Designed to gently lift products up to 7 meters, this innovative equipment offers professionals in various industries a cost-effective and efficient way to transport goods. In this blog post, we will delve into the features and benefits of the spiral elevator, highlighting its fully stainless steel construction, low maintenance design, and versatility in heating and cooling configurations.

Features

  • Fully stainless steel construction in 304 or 316.
  • Designed to elevate to a specific height from 750 mm to 7000 mm

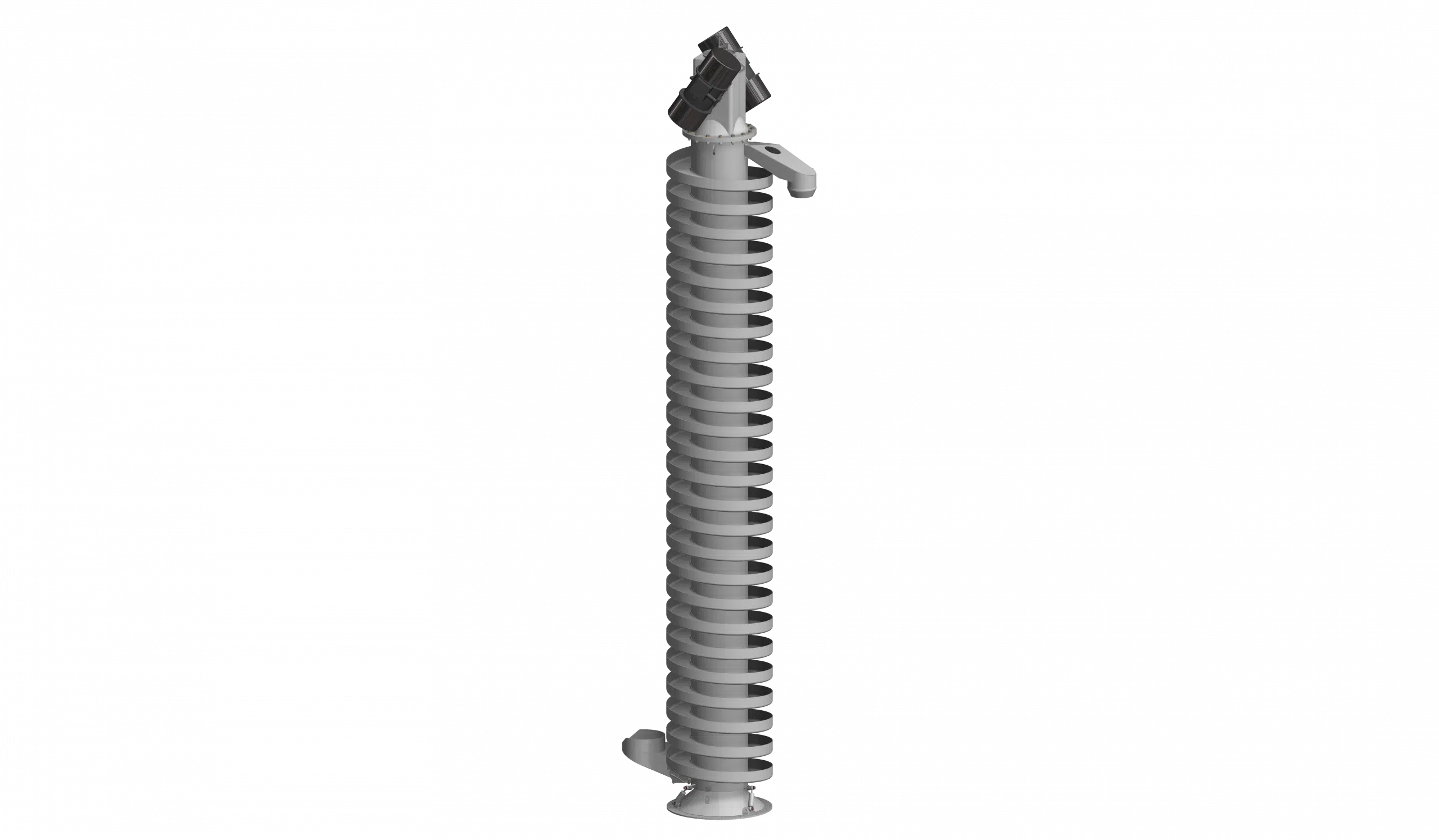

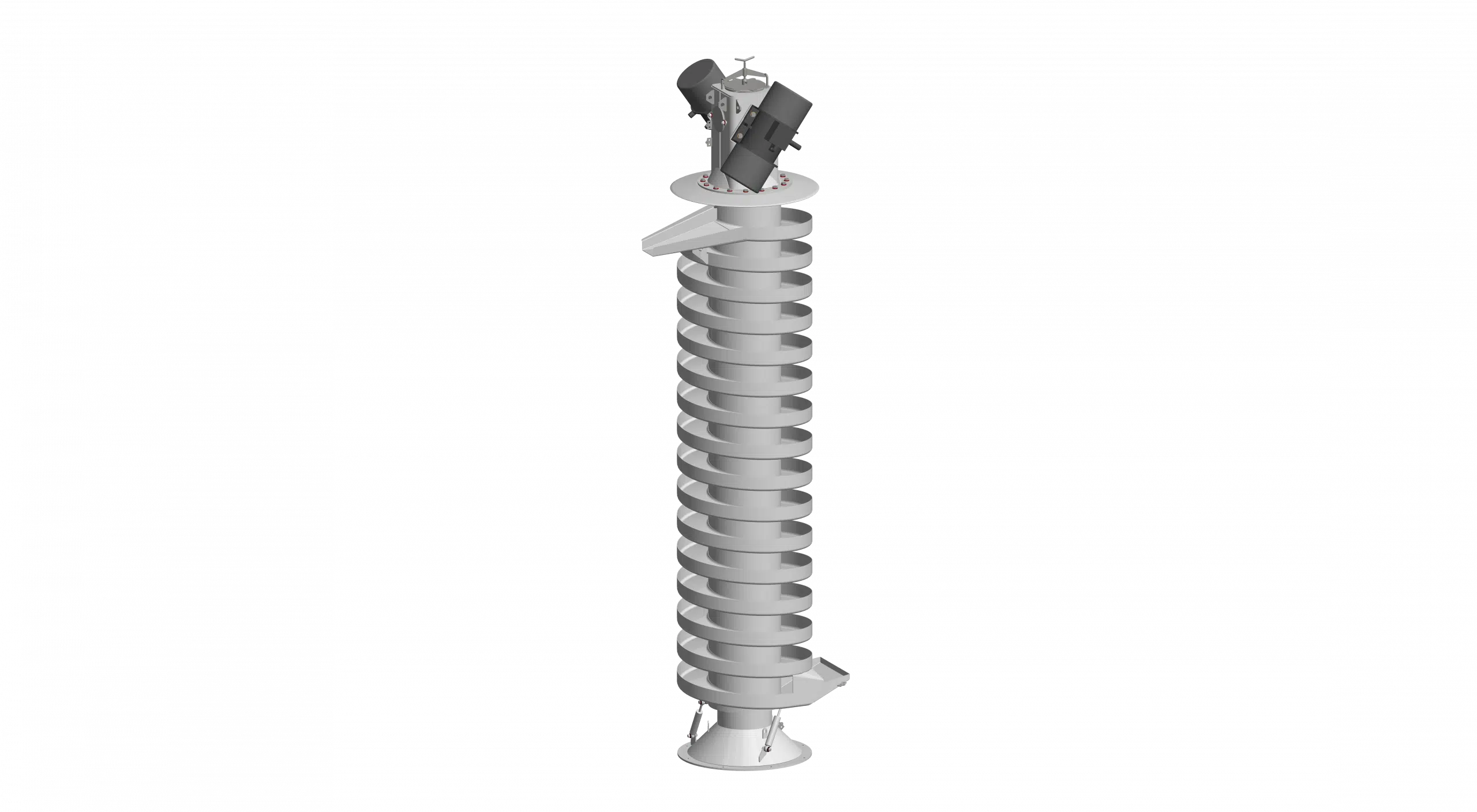

  • Small footprint Ø750 mm or Ø1500 mm depending on throughput
  • Heavy-duty
  • Can be configured for heating and cooling
  • Integrated supports
  • Low maintenance
  • Hygienic design

The spiral elevator combines the principles of a vibratory/oscillating conveyor with a helix-shaped structure to provide efficient vertical lifting. Constructed from either 304 or 316 stainless steel, this equipment offers longevity and compliance with hygiene regulations. With two diameter options of 750 mm or 1500 mm, the spiral elevator can accommodate varying throughput requirements. Capable of lifting products from 750 mm to 7000 mm in height, this equipment provides versatility to suit diverse vertical conveying needs. The gentle oscillation of the spiral elevator ensures that products are handled delicately, minimising the risk of damage or degradation during transport. The spiral elevator offers professionals in material handling industries a reliable and efficient solution for vertical conveying. With its fully stainless steel construction, low maintenance design, and configurable heating and cooling options, this equipment addresses the specific needs of various applications. The small footprint and integrated supports contribute to its space-saving design and stable operation. By investing in a spiral elevator, businesses can enhance their material handling processes, optimise space utilisation, and ensure the gentle handling of products. This versatile equipment is a valuable addition to production facilities, supporting efficient operations and product quality assurance.

  • Fully Stainless Steel Construction: The spiral elevator is constructed from either 304 or 316 stainless steel, ensuring durability, corrosion resistance, and compliance with stringent hygiene standards. This robust construction allows the equipment to withstand the demands of different industrial environments, making it suitable for a wide range of applications.
  • Designed for Specific Height Requirements: With the ability to elevate products to a specific height ranging from 750 mm to 7000 mm, the spiral elevator offers flexibility and customisation. This feature ensures that the equipment can meet the unique vertical conveying needs of various industries, providing a tailored solution for efficient material handling.
  • Small Footprint: Space efficiency is a crucial factor in many production facilities. The spiral elevator’s small footprint, with options of Ø750 mm or Ø1500 mm depending on throughput requirements, allows it to fit seamlessly into existing floor plans. By utilising a compact design, this equipment optimises the utilisation of space while maintaining high productivity levels.
  • Heavy-Duty Construction: To handle heavy loads and withstand rigorous industrial settings, the spiral elevator is built with a heavy-duty design. This ensures that the equipment can handle the weight of products being lifted without compromising on performance or safety. The robust construction promotes longevity, reducing the need for frequent repairs or replacements.
  • Configurable for Heating and Cooling: In certain industries, temperature control is essential during the material handling process. The spiral elevator can be configured to integrate heating or cooling elements, allowing for precise temperature management while lifting products. This configuration versatility makes the spiral elevator suitable for applications that require specific thermal conditions.
  • Integrated Supports: To ensure stability and smooth operation, the spiral elevator comes with integrated supports. These supports provide structural reinforcement, preventing excessive vibration and ensuring a secure and reliable vertical conveying process. The integrated design reduces the likelihood of misalignment or maintenance issues, contributing to the overall efficiency of the equipment.
  • Low Maintenance: The spiral elevator is designed with low maintenance in mind. Equipped with reliable drive motors and constructed from high-quality materials, this equipment minimises the need for frequent servicing or repairs. By reducing maintenance requirements, professionals can focus on their core operations without the hassle of extensive downtime or costly maintenance routines.
  • Hygienic Design: Compliance with hygiene standards is critical in industries such as food processing and pharmaceuticals. The spiral elevator’s stainless steel construction and smooth surfaces promote easy cleaning and sanitisation. This hygienic design ensures that the equipment adheres to strict cleanliness protocols, minimising the risk of contamination and supporting product integrity.

See where else we use the Spiral Elevator Machine

Vibratory Conveying Systems with the Spiral Elevator

Elevating Conveyor Systems

The KMG range of elevating conveyor systems consists of Vibratory Spiral, Bucket Elevator, Single Bucket Lift and Tip (BLT) and Flighted Belt type. Each design is available in a range of sizes appropriate to product throughput and bulk density.

Elevating Conveyor Systems
elevator conveying systems

elevator conveying systems

Elevating Conveyor Systems

The KMG range of elevating conveyor systems consists of Vibratory Spiral, Bucket Elevator, Single Bucket Lift and Tip (BLT) and Flighted Belt type. Each design is available in a range of sizes appropriate to product throughput and bulk density.

Elevating Conveyor Systems

Suitable products for the Spiral Elevator
